As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
Clearer video

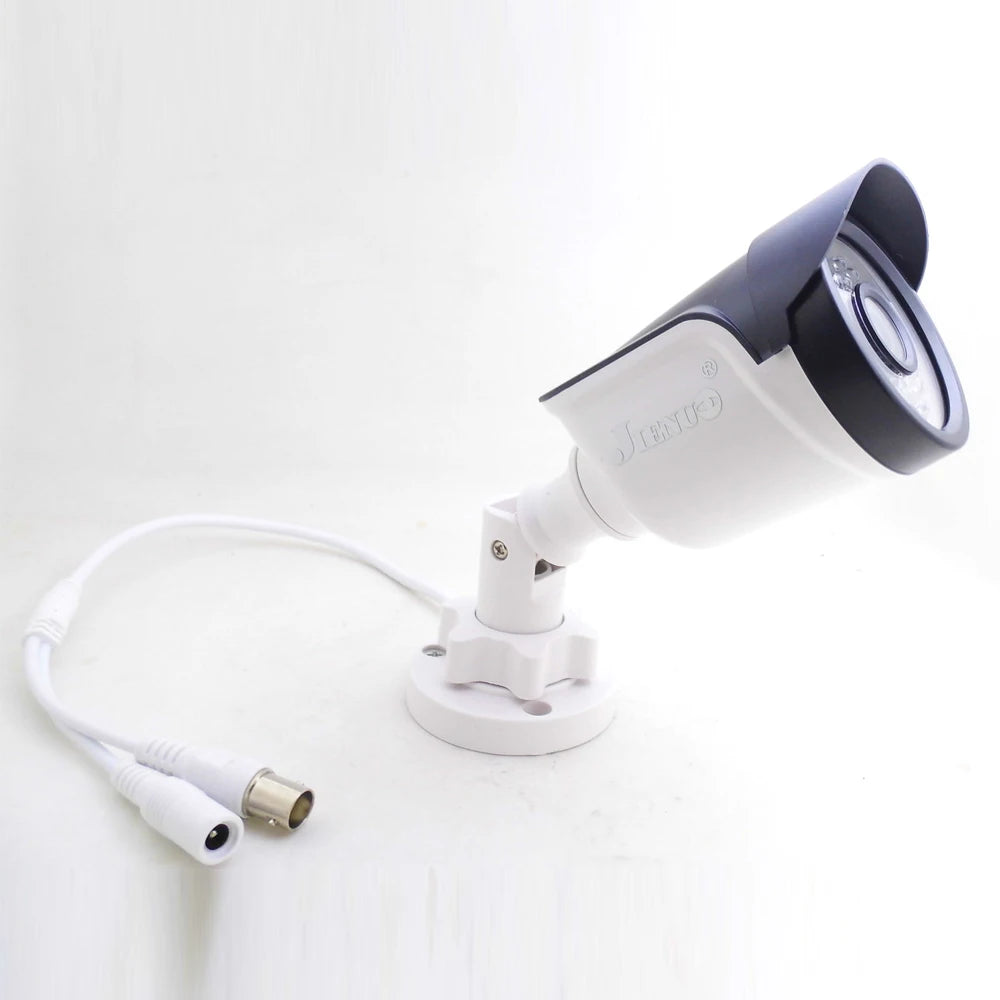

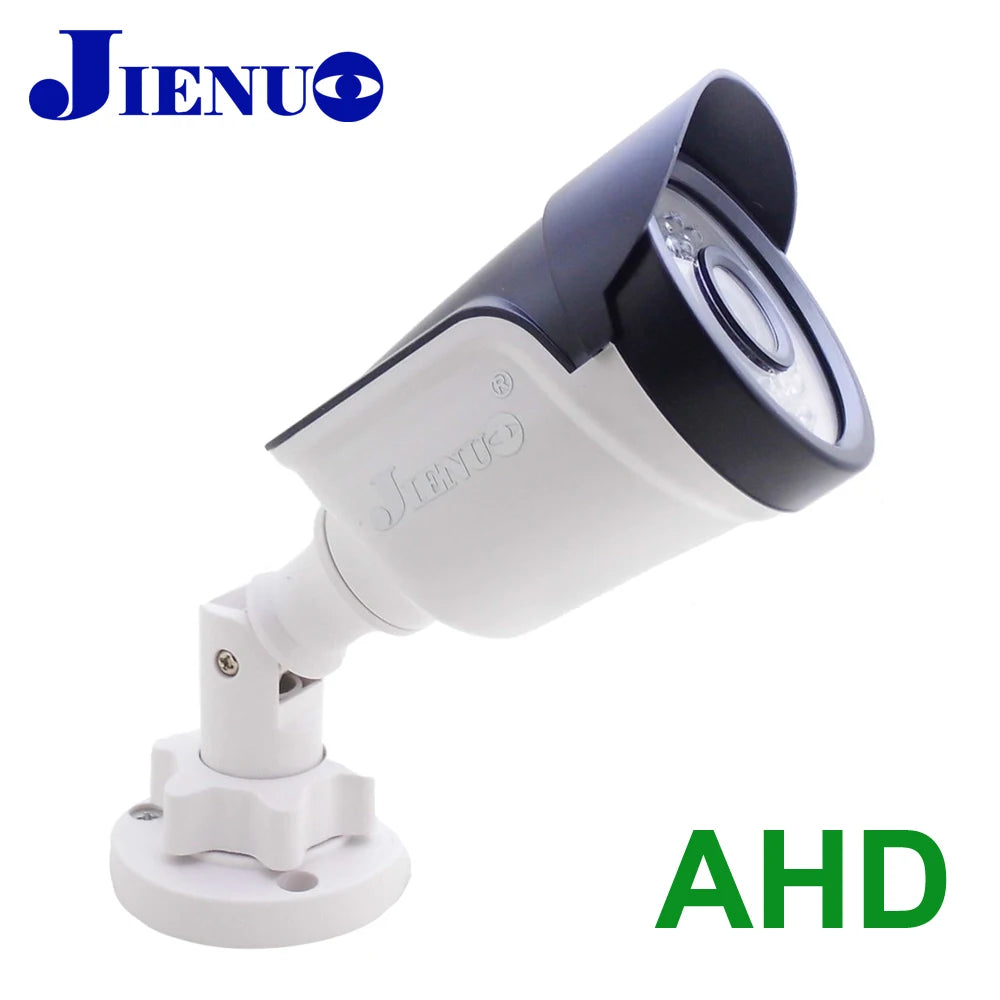

1.HD camera
2.Resolution :720P / 1080P / 4MP / 5MP
3.24PCS IR LEDS with 5-25M IR Distance

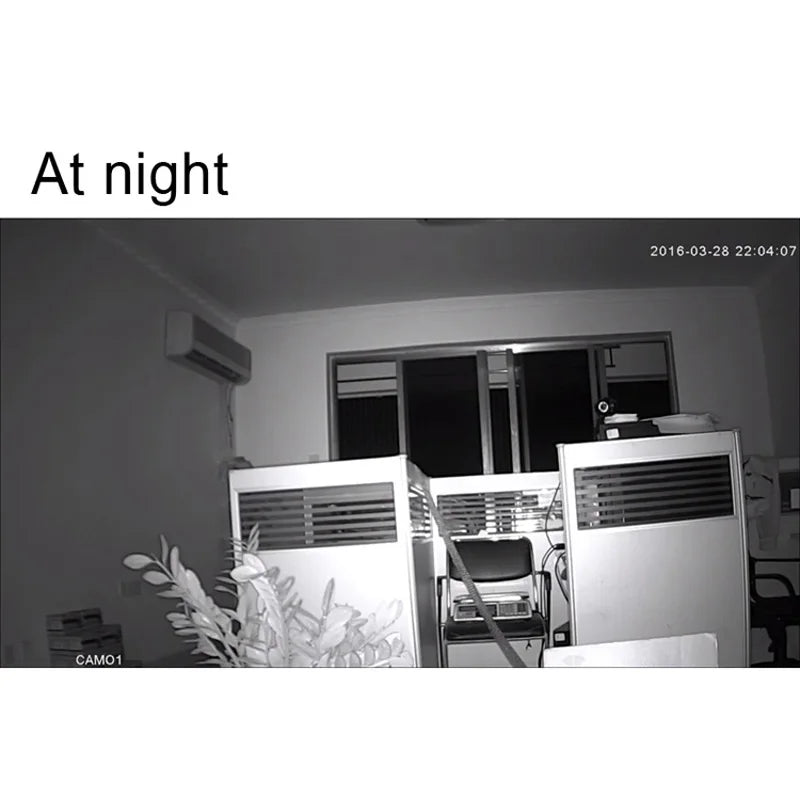

4. Built in IR-CUT Filter, Day & Night Vision
5. High Quality ABS Plastic Case, Used Indoor/Outdoor, Waterproof IP66
6. Standard lens: HD 3.6mm Lens ( 6mm lens optional).
7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.
10. MUST work with AHD DVR
11. Best choice for project reconstruction.
12. You can upgrade an old analog security system to HD cameras without changing cable routes.
***P.S: Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV
When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu, or contact us
How to choose
720P: Resolution 1280*720
1080P: Resolution 1920*1080
4MP: Resolution 2560*1440
5MP: Resolution 2560*1920
| Sensor Size |
5MP, 720P, 4MP, 1080P |
|---|---|
| Signal System |
NTSC, PAL |
| Focus |
8mm, 6mm, 3.6mm |
